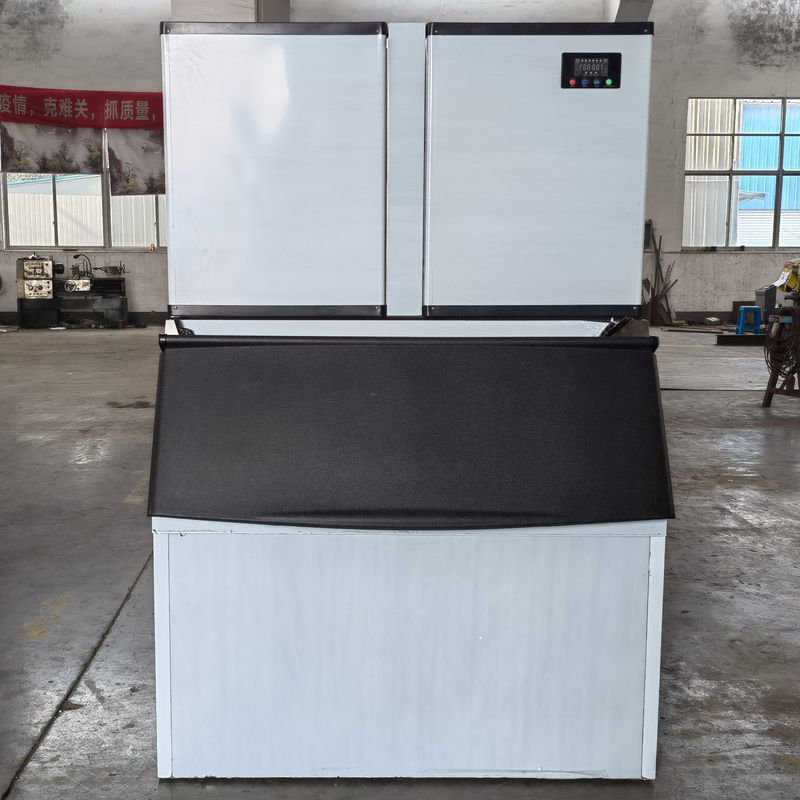

Commercial Tube Ice Machine 500kg 1000kg 24h Output with Bitzer Compressor

Dettagli:

Place of Origin:	Jiangsu, China
Marca:	ETERNITY

Termini di pagamento e spedizione:

Minimum Order Quantity:	1

Contatto

Descrizione di prodotto dettagliata

Ice shape:	tube ice	Voltage:	110V, 220V, 380V, 440V, 240V
Dimension:	12409501220	Ice storage:	500kg, 1000kg
Power:	1380	Refrigerant:	r404a, R22a
Weight:	210kg	Ice production:	1000kg/24h
Input power:	3680W	Ice size:	222222mm or customized
Power supply:	220V/380V/415V/460V 3P/50hz/60hz	Compressor brand:	Bitzer, Performer, HIGHLY/COPELAND
Core components:	Pressure vessel, motor, Bearing, Gear, Pump, Gearbox	Ice tray material:	High-quality copper electroplating
Maximum ice size:	454522
Evidenziare:	Commercial tube ice machine 500kg , Bitzer compressor ice machine , 1000kg tube ice maker

Commercial Big Ice Industrial Cube Maker Machine 500kg/1000kg

Key Specifications

Attribute	Value
Ice Shape	Tube Ice
Voltage	110V, 220V, 380V, 440V, 240V
Dimensions (L×W×H)	1240×950×1220 mm
Warranty	1 Year
Ice Storage Capacity	500kg, 1000kg
Power	1380W
Weight	210 kg
Refrigerant	R404a, R22a
Compressor Brand	Bitzer, Performer

Key Features

Fully automatic operation with high productivity
Competitive pricing with easy operation
High-accuracy control system
Famous brand low voltage components
Energy-saving design with long service life
Includes machinery test report and video outgoing-inspection

Detailed Specifications

Model: ETD-C2000

Ice Production: 1000kg/24h

Ice Storage: 480kg

Input Power: 3680W

Net Weight: 210kg

Compressor: HIGHLY/COPELAND

Refrigerant: R404a/R22/R134a

Ice Size: 22×22×22mm or customized

Power Supply: 220V/380V/415V/460V 3P/50hz/60hz

Advanced Features

Embedded automatic control panel with fault code display
Time-controlled ice thickness adjustment (no mechanical switch required)
High-efficiency scroll compressor with low noise operation
High-quality copper electroplated ice tray for faster heat transfer
Independent ice storage bucket with large capacity

Model Comparison

Model	Output	Input Power	Ice Storage	Refrigerant	Power Supply	Machine Size
ETD-C120	54kg/24h	400W	26kg	R404a/R134a/R22	220v/1p/50hz	530×600×820mm
ETD-C150	68kg/24h	420W	46kg	R404a/R134a/R22	220v/1p/50hz	530×600×820mm
ETD-C200	90kg/24h	600W	60kg	R404a/R134a/R22	220v/1p/50hz	530×600×820mm
ETD-C280	128kg/24h	650W	66kg	R404a/R134a/R22	220v/1p/50hz	680×690×1000mm
ETD-C300	136kg/24h	750W	150kg	R404a/R134a/R22	220v/1p/50hz	560×830×1560mm
ETD-C350	158kg/24h	800W	150kg	R404a/R134a/R22	220v/1p/50hz	560×830×1580mm
ETD-C500	227kg/24h	1180W	250kg	R404a/R134a/R22	220v/1p/50hz	760×830×1610mm
ETD-C700	318kg/24h	1350W	250kg	R404a/R134a/R22	220v/1p/50hz	760×830×1730mm
ETD-C1000	454kg/24h	1860W	250kg	R404a/R134a/R22	220v/1p/50hz	760×830×1780mm
ETD-C1200	544kg/24h	2150W	250kg	R404a/R134a/R22	220v/1p/50hz	760×830×1800mm
ETD-C1500	681kg/24h	2800W	480kg	R404a/R134a/R22	220v/1p/50hz	1240×950×1910mm
ETD-C2000	1000kg/24h	3680W	480kg	R404a/R134a/R22	380v/3p/50hz	1240×950×1950mm

Customizable Ice Sizes

The following specifications of ice can be customized:

11×22×22mm
22×22×22mm
29×29×22mm
35×35×22mm
40×40×22mm

Maximum Size: 45×45×22mm

Premium Components

Scroll Compressor

Compact size with lightweight design
Excellent stability and security with low noise operation
Long service life with efficient and reliable performance

Food Grade Ice Tray

High-quality copper electroplating construction
Nickel plated for safe and hygienic ice storage
Strong corrosion resistance with excellent heat transfer

Danfoss Expansion Valve

Industry-leading quality for higher refrigeration efficiency
Pure copper valve body for optimal thermal conductivity
Internal balance design for stability in small systems

Reliable Condenser

Compact footprint with capacity expansion
One-piece bending construction eliminates leakage
Long service life with surface anti-corrosion paint

Control Panel Features

One-key start/stop with ice making reservation function
Direct fault code viewing for easy troubleshooting
Real-time display of ice making and de-icing time
Comprehensive status indications for maintenance

Included Accessories

Comprehensive installation accessories package
Standard filters included (optional filters available)
Cooling fan (air cooling)
PC board
Electric generator
Dry filter
Ice storage components
Water filter

Production Process

Sheet-metal Working

Design
Blanking
Laser cutting
Bending
Welding
Polishing

Assembling

Fix all accessories
Connect pipes
Weld copper pipes
Keep pressure, leak detection
Wiring
Vacuum

Heat Preservation

Foaming
Rubber and plastic

Filling refrigerant
Testing current
Testing pressure
Testing output

Applications

Cube ice machines are ideal for:

Hotels, KTV, and bars
Banquet halls and western restaurants
Fast food restaurants and convenience stores
Cold drink shops and any location requiring ice pellets

The cube ice produced is crystal clear, clean, and hygienic - offering efficient, safe, energy-saving, durable, and environmentally friendly operation.

Frequently Asked Questions

Q1: What is the lifespan of the machine?

R1: It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Regular cleaning is recommended.

Q2: What is your payment method?

R2: We prefer T/T but also accept pre-T/T+L/C or 100% L/C at sight. Payment can also be made directly through Alibaba. We offer multiple payment options to suit your needs.

Q3: Which brands of compressors do you use?

R3: We primarily use BITZER, Frascold, Refcomp, Copeland, Highly and other premium brands.

Q4: What type of refrigerant are you using?

R4: Refrigerant type depends on the model. We routinely use R22, R404A, and R507A. Special requirements can be accommodated upon request.

Q5: Do I need to add refrigerant and refrigeration oil to the machine?

R5: No, we add refrigerant and refrigerating oil according to standards before shipment. You only need to connect water and electricity to begin operation.
